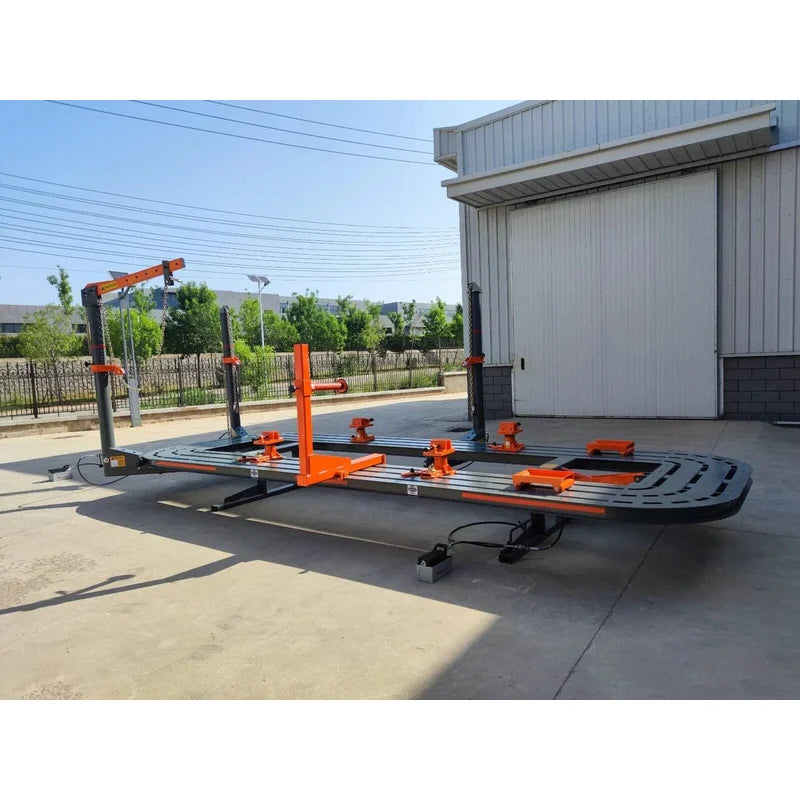

Katool KT-198L Auto Body Frame Machine
Katool KT-198L Auto Body Frame Machine
SKU::KT-198L
✓ No Sales Tax
Need Help? Call 877-708-0160
Couldn't load pickup availability
Description
The Katool KT-198L Auto Body Frame Machine is your solution for efficient and precise collision repair. This machine features quick-fix clamp jaws that enhance chassis clamping efficiency by screwing the shaft clockwise. The tilt hydraulic lifting platform, assembled with light and flexible support legs, provides versatility in positioning. With a unique tower wheels movement device, this machine offers exceptional maneuverability.
The leading arm is designed to supply multi-directional tensile force during collision repair. Light and flexible ramps make driving on and off the platform a breeze. Complimentary accessories and tools, as per configuration, are included for body collision repair needs. Additionally, the machine incorporates automatic robot welding for enhanced precision and durability.
Features
- Quick-fix clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient
- Tilt hydraulic lifting platform assembled with light and flexible support legs

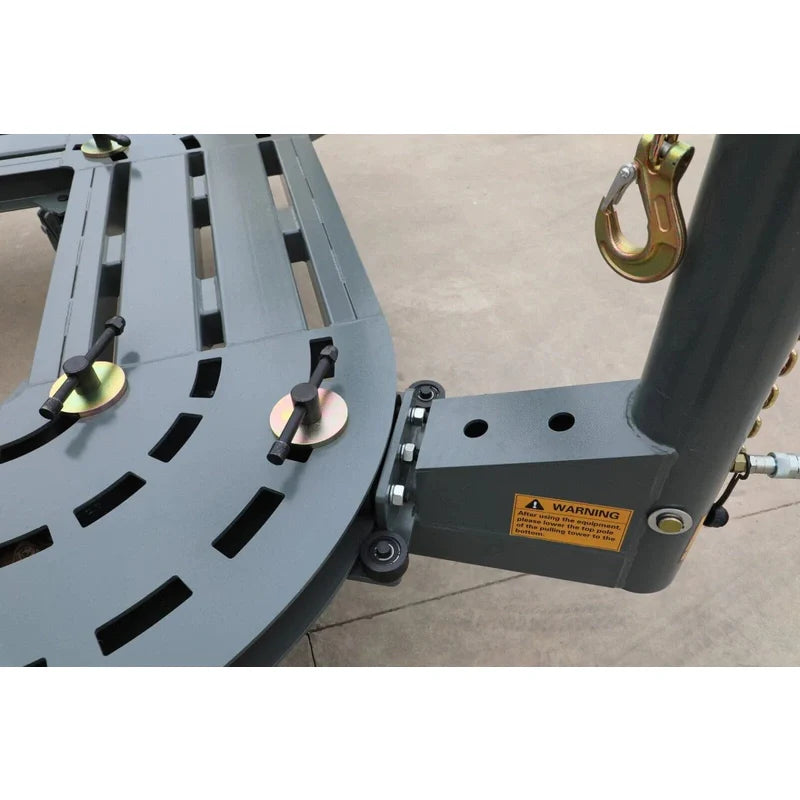

- Unique tower wheels movement device
- The leading arm can supply multi-direction tensile force during the collision repair
- Light and flexible ramps for driving on and off

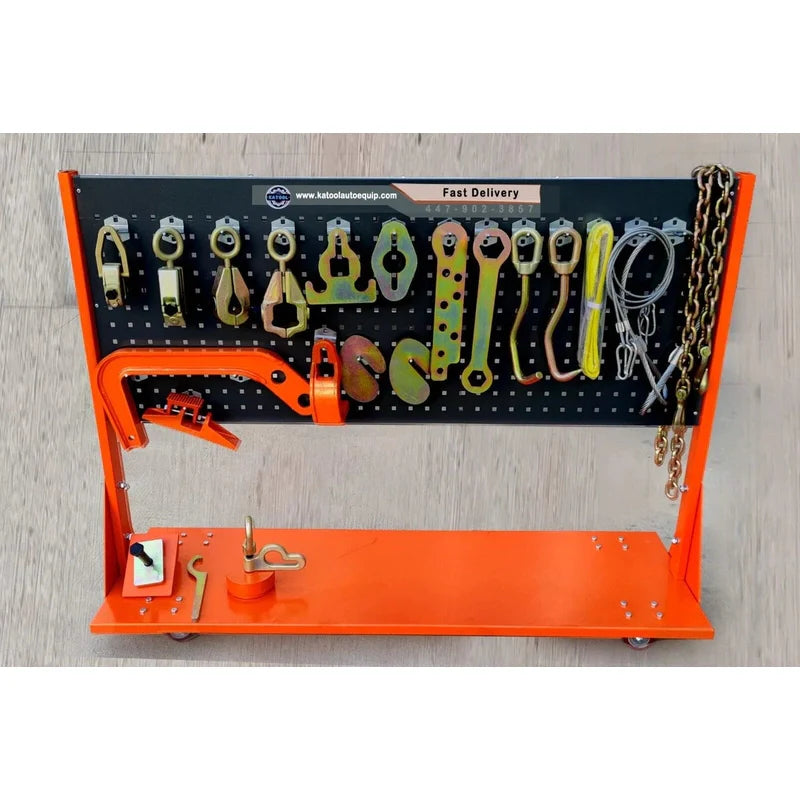

- Complimentary accessories and tools for body collision repair. (as per configuration)
- Automatic robot welding
Specifications
| Length | 236.4 Inch |
| Width | 84.3 Inch |
| Height | 4.3 to 67 Inch |
| Pulling Capacity | 100 KN |
| Air Supply Required | 0.8 MPA |
| Radius of Pulling | 360 Degrees |
| Max Load | 7700 lbs (CE Certified) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
